Product Details

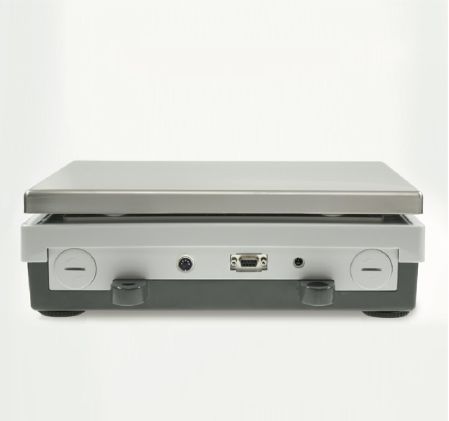

Bench Scale FKT Series

Touchscreen industrial scale with enormous range of functions, also with EC type approval [M]

  • I) 80 memories for each operation mode, e.g., for checkweighing, PRE-TARE, reference weight, target weight when dispensing etc.
  • II) Convenient recipe weighing: 99 recipes each with 10 components each can be stored in plain text. If one recipe ingredient is overweight, then the practical recipe adjustment function for when dosages are exceeded automatically calculates the new target weights of the other ingredients. The actual and target values and the proportionate percentage can then be printed. The recipes can be generated easily in an Excel list at the PC and transferred to the balance using the RS-232 interface. Alternatively, the recipes can also be entered directly using the keypad
  • III) Multiplier function: recipes where the ingredients have been recorded as percentages can easily be multiplied when entering the new target weight is entered, target weight , which is ideal for the production of larger containers, bulk packs etc.
  • IV) Rapid function for shortened stabilisation time with reduced readout
  • V) 16 print forms which can store up to 20 different information, such as, e.g., date, time, operator, item, net, tare, gross, PCS, target weight, PRE-TARE etc. The print forms can be generated easily in an Excel list in the PC and transferred to the balance using the RS-232 interface

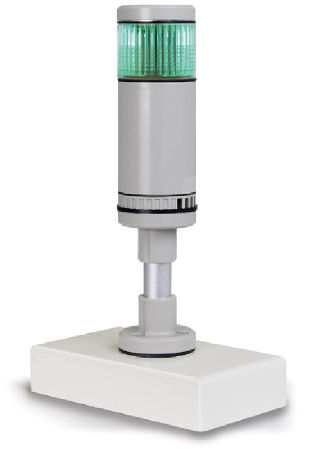

  • VI) Control outputs (optocoupler, digital I/O) to connect relays, signal lamps, valves etc. (35 V / 80 mA)
  • VII) Hook for underfloor weighing of hanging loads standard for models with weighing plate size
  • VIII) For particularly high counting accuracy, there is an option of combining the KERN FKT range with a high-precision reference balance to make a counting system, please enquire

Recipe weighing
Totalising with daily total
Percentage determination
Animal weighing
Surface weight
Density determination, only with , not for
Rapid function, not for

Capacity display, with - , - , -
Dispensing aid (subtractive/additive), with ,
Net/gross display, permanent, with , - , -
Variable reference quantity, with
Automatic reference optimisation, with
PRE-TARE numerical or from the memory unit, with - ,
Input of item or batch description, operator etc., with -
Freely programmable weighing unit, e.g. display direct in special units such as length of thread g/m, grammage g/m2, or similar, with
Date/time, with -
Statistical function, with
GLP printout, with -
Individual formatting of up to 16 printer forms, recipes, operating mode master data in MS Excel, import via RS-232, for examples, see the internet, with -
